Star of the South would harness strong Bass Strait winds to generate renewable energy for at least 30 years, while also creating local jobs, investing in Gippsland, and continuing the region’s role powering Victoria.

Watch our latest project update video

Installed capacity: up to 2.2 GW
Licence area: 586 km²
Distance from shore: 10 km at the closest point
Number of turbines: up to 150
Maximum turbine height: up to 350 m
Number of offshore substations: up to 5
Water depths: 15 m – 53 m

This map is designed to support consultation. All information presented is indicative only, based on currently available information, and is subject to change as regulations and requirements are confirmed and the project is further refined through ongoing consultation, design, assessment, and approval processes.

Back to main menu Offshore wind in Gippsland

Next – Turbines

Back to categories

Back to main menu Turbines

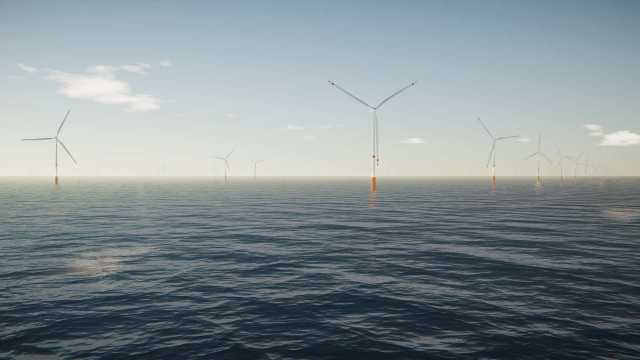

Turbine technology is continuing to advance, resulting in more efficient, cost-effective and sustainable models. We’ll select a turbine after all investigations and assessments are complete.

We expect to use a turbine between 271 m and 350 m tall.

If the project is built to its full capacity of 2.2 GW, up to 150 of the smaller turbines or fewer larger turbines would be installed.

Learn what each part of a turbine does

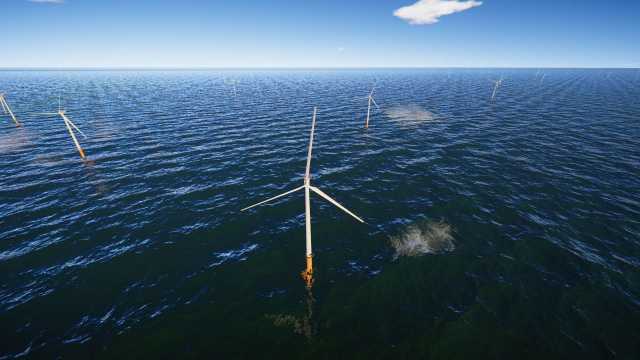

Turbines would be installed on a foundation fixed to the seabed. For Star of the South a monopile foundation is proposed. This is the most commonly used foundation for offshore wind farms worldwide, and ideal for the ground conditions and water depths in this location.

See how turbines are installed

Turbines will be fitted with marine and aviation safety lighting. Visualisations on this map show indicative lighting, pending the confirmation of lighting requirements from relevant authorities.

Next – Transmission

Back to categories

Back to main menu Transmission

A system of substations and cables would transmit electricity from the turbines to a VicGrid connection hub.

From the connection hub, VicGrid will plan and deliver transmission infrastructure to connect offshore wind energy from multiple projects to the grid.

Find out more about VicGrid’s work

Project transmission infrastructure would include:

Array cables

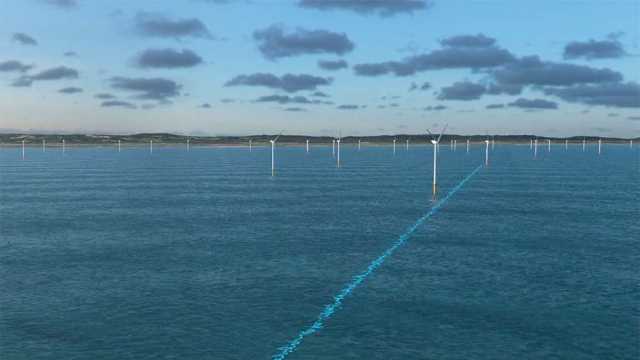

Array cables connect turbines to each other and to offshore substations. They are buried in the seabed where possible. The route these cables take will depend on the final wind farm layout.

Offshore substation/s

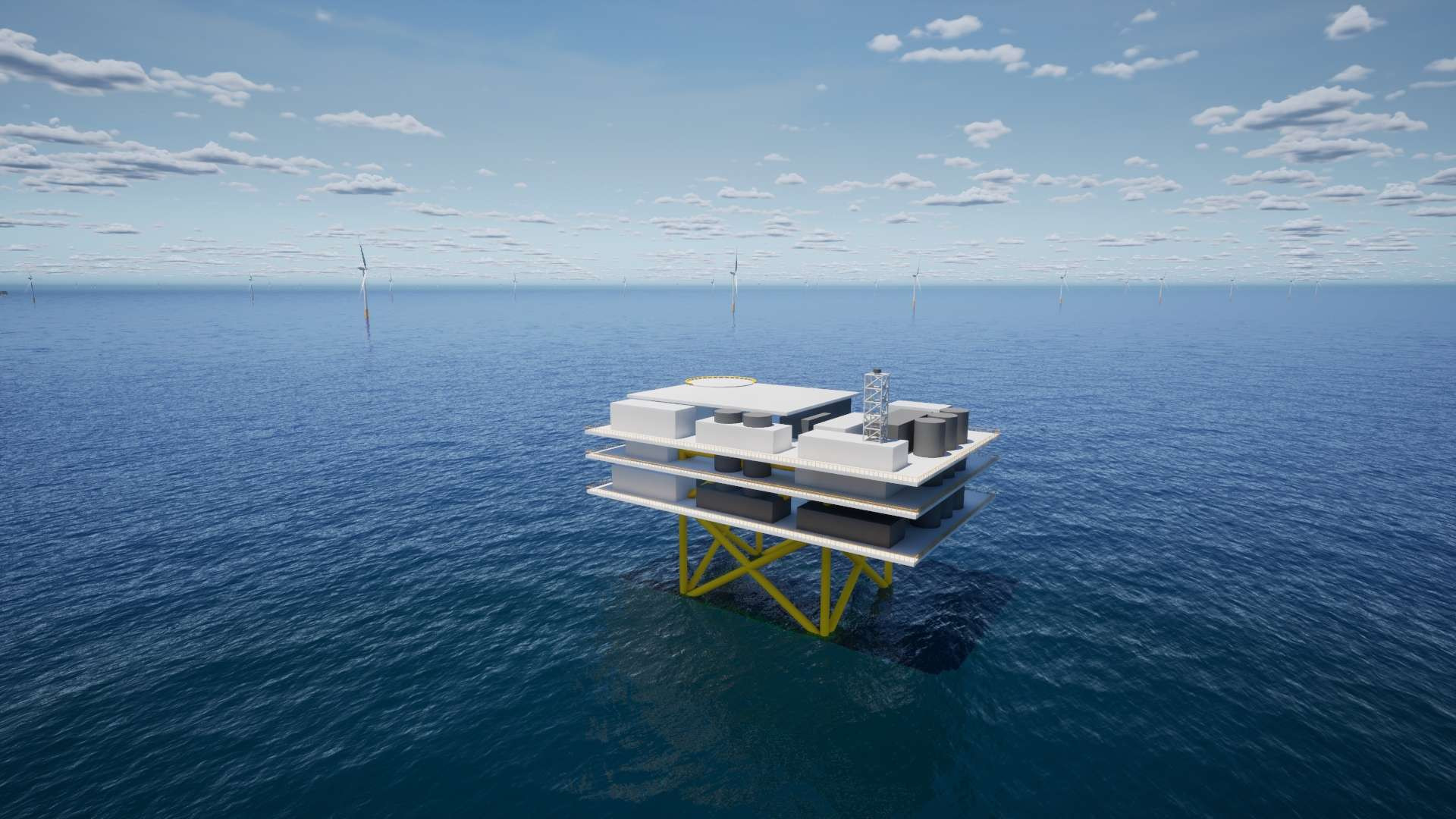

Offshore substations collect and transform offshore wind energy to a higher voltage for transmission to shore. They sit on a platform around 30 m above the water and typically have one or more decks and electrical equipment. The number and location of substations will depend on the final project size, turbine type and wind farm layout.

Subsea export cables

High voltage subsea cables transfer electricity from the offshore substations to shore. They are buried in the seabed where possible. The route these cables take will depend on the final wind farm layout, marine environment study findings and seabed conditions.

Shore crossing

The shore crossing is where the subsea export cables connect with underground export cables on land.

We’ll do this using a no-trenching construction method – to minimise disturbance to the shallow marine, beach and dune areas.

See how the shore crossing is constructed

Underground export cables

Underground export cables transfer electricity between the subsea export cables and an onshore substation.

The cables would be installed underground.

Onshore substation

The onshore substation is located above ground. It contains the electrical equipment needed to connect the wind farm to the grid. The substation is expected to be located near the VicGrid connection hub.
